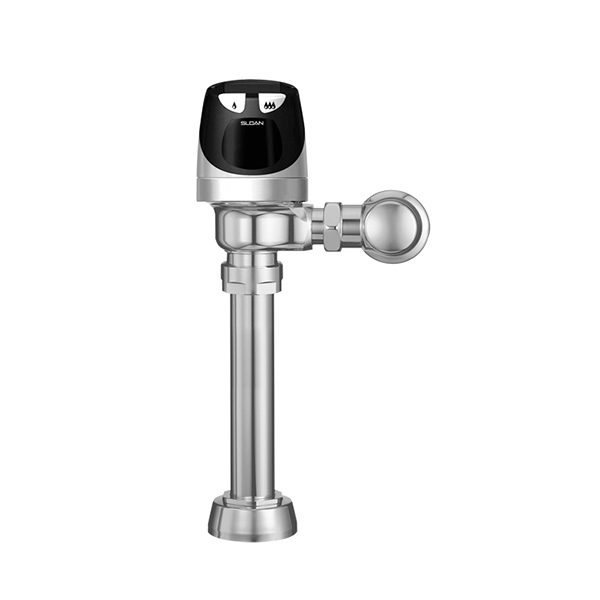

SLOAN SOLISDF 8111-1.6/1.1 SOLIS DUAL FLUSH CLOSET FLUSH VALVE 1.6-1.1 GPF

Solis Dual Flush Closet Flushometer – 1.6-1.1 GPF, 1-1/2" Top Spud. Polished Chrome Finish, Fixture Connection Top Spud, Dual Flush, Solar, SOLIS® Exposed Sensor Water Closet Flushometer.

Specifications:
• Flush Volume: 1.6/1.1 GPF
• Finish: Polished Chrome
• Power Type: Solar
• Battery Life: 6 years
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 1⁄2"
• Spud Coupling: 1 1⁄2"
• Supply Pipe: 1"
• Override: Electrical

Features:
• Solar Powered. The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED), and use it as the energy source. The solar cell can provide approximately 100% power with 650 illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source
• “Low Battery" Flashing LED
• If the user is present for less than one minute and leaves the sensing zone or chooses the small override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present for greater than one minute and leaves the zone or chooses the large override button, the full flush initiates (1.6 gpf/ 6.0 Lpf) eliminating solid waste and paper
• Reduces water volume by up to 30% when a reduced flush occurs Flex Tube Diaphragm designed for improved life and reduced maintenance
• ADA Compliant Sloan SOLIS® Electronic Dual Flush Solar Powered Infrared Sensor for automatic “No Hands" operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• User friendly three (3) second Flush Delay
• Courtesy Flush® Override Button
• Sweat solder adapter with cover tube and cast wall flange with set screw
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• 1" I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass

EC Part Number: #84998
Manufacturer Number: SOLISDF8111-1.6/1.1
Manufacturer: Sloan Valve Co
