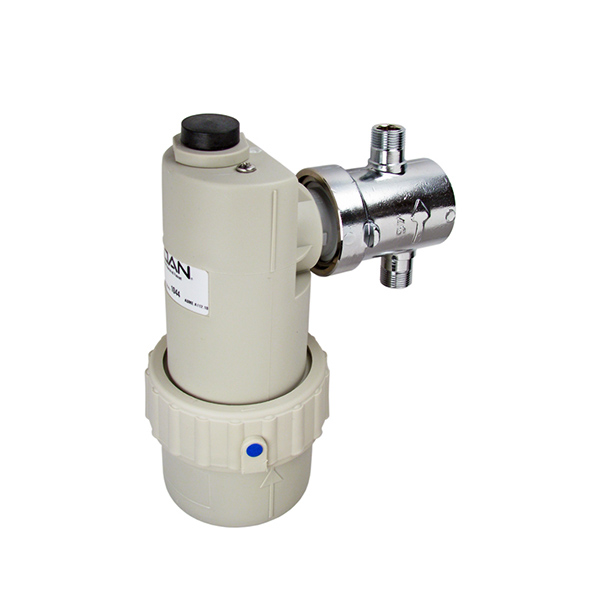

SLOAN EBF11A SOLENOID VALVE MODULE (BATTERY POWERED MODEL)

This electronic solenoid valve module is battery operated. Sloan Sensor Faucets such as the EBF-85 may require certain maintenance procedures or replacement parts as time goes by and here at Equiparts we have the parts, information and expertise to help you keep your equipment in top running form. EFB-85 faucets are fitted with an electronic solenoid valve located within the solenoid valve module. This Sloan faucet solenoid module assembly, part #EBF-11-A, is comprised of the faucet solenoid enclosure, the solenoid body and a filter cap.

If you’re experiencing audible beeps from your faucet’s solenoid valve module after fresh batteries have been installed and the unit has completed its 30-second self-calibration cycle but no beeps are heard when something enters the faucet’s sensor zone, the problem may be a defective solenoid valve module. Alternatively, if you hear beeps when a target is in the detection zone but you don’t hear an audible click and the water doesn’t start running, this could also indicate a defective module, which should then be replaced. Other possible causes of these problems that should also be checked are an improper fiber optic cable connection to the solenoid valve module or that the fiber optic cable itself is defective.

EC Part Number: #54003
Manufacturer Number: EBF11A
Manufacturer: Sloan Valve Co
