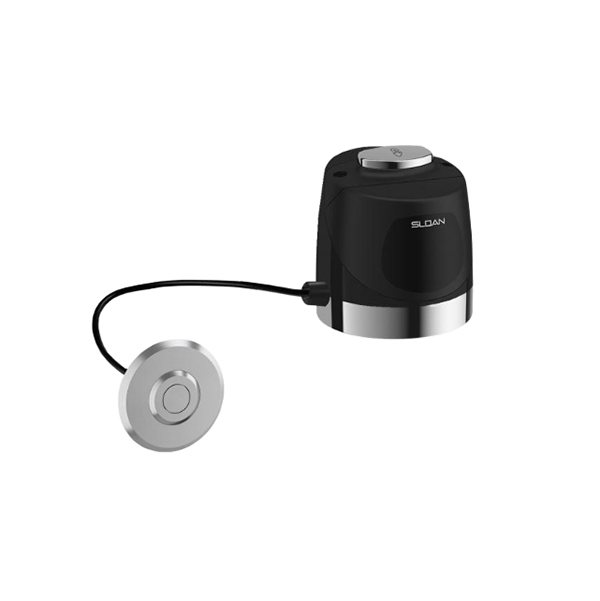

SLOAN PWT-ESM RESS-1.6/2.4/3.5-MBFW CONCEALED CLOSET PWT RETROFIT 1.6-3.5 GPF

This 1.6 – 3.5 GPF Concealed Closet PWT Retrofit is from Sloan. For use in prisons or other facilities where you need to regain control of your water usage. Retrofit is an excellent economical way to control water closets. Intended to be retrofitted onto preexisting compatible manual and hydraulic flushometers (see list below for compatibility). Retrofit is factory set at 2 Activations in 5 minutes, with a field-changeable 15 minute lockout. Unit is battery powered and has a Standard Touch Button. Sloan model number PWT-ESM RESS-1.6/2.4/3.5-MBFW, code number 33250023.

Specs:
• Flush Volume: 1.6 / 2.4 / 3.5 GPF
• Finish: Rough Brass
• Power Type: Battery
• Valve: Diaphragm
• Fixture Type: Water Closet
• Push Button: Metal Button Fixture Wall Actuator

Features:
• Program set to 2 activations in 5 minutes with 15 minutes lockout
• Program is field changeable to 30, 45 and 60 minute lockout times, or dorm setting
• Can be used with stainless-steel water closet fixtures from Acorn, Bradley, Metcraft and other manufacturers
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Adjustable tailpiece accommodates various installation height Single Flush
• Solenoid operated 1.28 GPF options
• Includes standard touch button
• Stainless steel, vandal proof button, chemical resistant push-button
operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
• Connector cable has white arrows for easy alignment
• Battery powered
• Four (4) Size AA Battery Power source
• Low Battery flashing LED
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037

Compatibility:
Manual flushometers:
• Royal 603
• Royal 611
• Royal 613

Hydraulic flushometers:
• Royal 9603
• Royal 9611
• Royal 9613

Click here to learn more about Sloan’s PWT (Programmed Water Technologies) System

EC Part Number: #49452
Manufacturer Number: PWT-ESM RESS-1.6/2.4/3.5-MBFW
Manufacturer: Sloan
