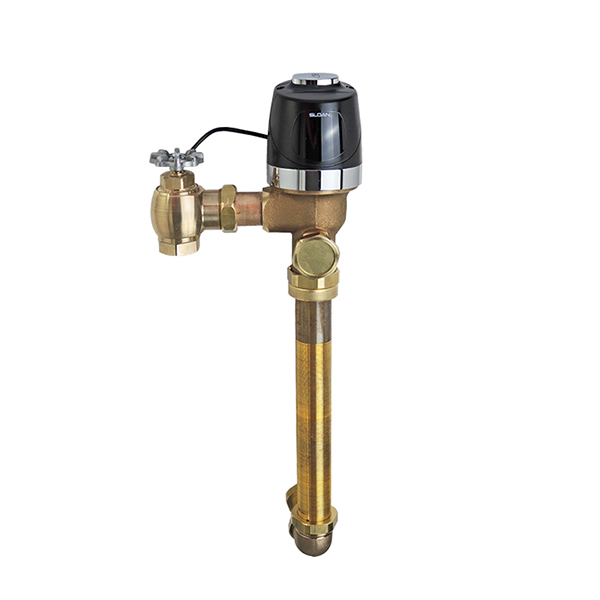

SLOAN 8603-ESM-1.28-PRGM-A5-LED 1.28 GPF ROUGH BRASS CONCEALED CLOSET FLUSHOMETER

This 1.28 GPF Rough Brass Concealed Closet PWT Flushometer is from Sloan. For use in prisons or other facilities where you need to regain control of your water usage. Features all of the performance benefits of standard concealed, diaphragm model flushometers with the added durability to withstand rough environments. Intended for use with stainless steel water closet fixtures from Acorn, Bradley, Metcraft, and other manufacturers. Unit is factory set at 1 Activation with Backside Delay of 60 seconds, and No Lockout. Flushometer is battery powered. Has a Standard Touch Button, and a 3/4-inch Vacuum Breaker. Sloan model number 8603-ESM-1.28-PRGM-A5-LED, code number 3250195.

Specs:
• Flush Volume: 1.28 GPF
• Finish: Rough Brass
• Power Type: Battery
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Program: A5
• Touch Button: LED

Features:
• 1.28 GPF flush volume to match with existing fixtures and meet water-efficiency goals
• PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Vandal-proof, push-button operation designed with non-hold-open feature to keep fixture from surpassing intended water consumption
• Adjustable tailpiece accommodates various installation height
• High chloramine resistant PERMEX synthetic rubber diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Battery powered
• Programmed for dorm setting; Program is field changeable to 2 activations in 5 minutes with 15, 30, 45, 60 minute lockout options

Click here to learn more about Sloan’s PWT (Programmed Water Technologies) System

EC Part Number: #48994
Manufacturer Number: 8603-ESM-1.28-PRGM-A5-LED
Manufacturer: Sloan
