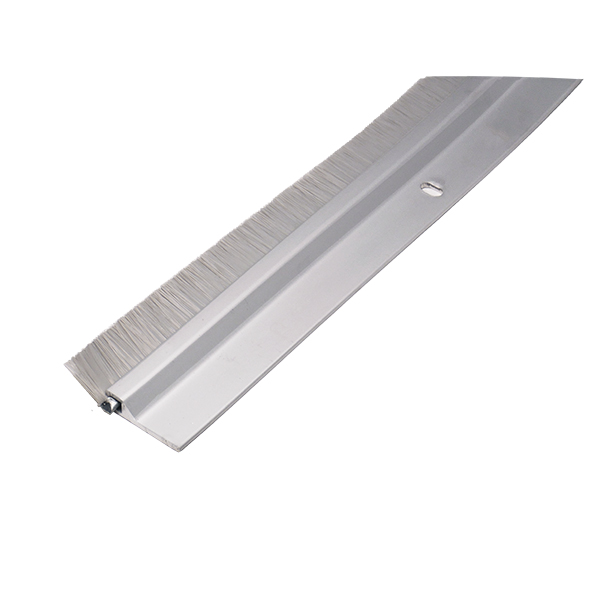

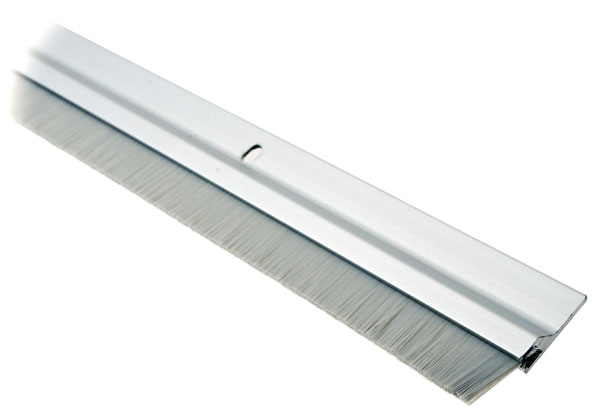

NATIONAL GUARD PRODUCTS 06309 SATIN ALUMINUM DOOR SWEEP

These Door Sweeps are made by National Guard Products, model #600A. The astragal or half rounded molding, is made of satin finished ionized aluminum alloy 6063, T5 temper that gets surface mounted to the door. The brush is constructed of gray synthetic nylon polymer; Polyamide. The unit is moisture resistant. It has a temperature rating of -70°F to 425°F. The aluminum astragal that attaches the door to the sweep has a height of ⅞", and the sweep itself is ½" long.

*These door seals are priced per foot, you must specify length when ordering.

Standards:
• REACH and RoHS compliant
• Certified by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• Positive Pressure – Certified by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• Air Filtration Tested to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
• ANSI/BHMA Certified. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
*Standard requirement information directly from National Guard Products literature.

EC Part Number: #10129
Manufacturer Number: 600A
Manufacturer: National Guard Products
