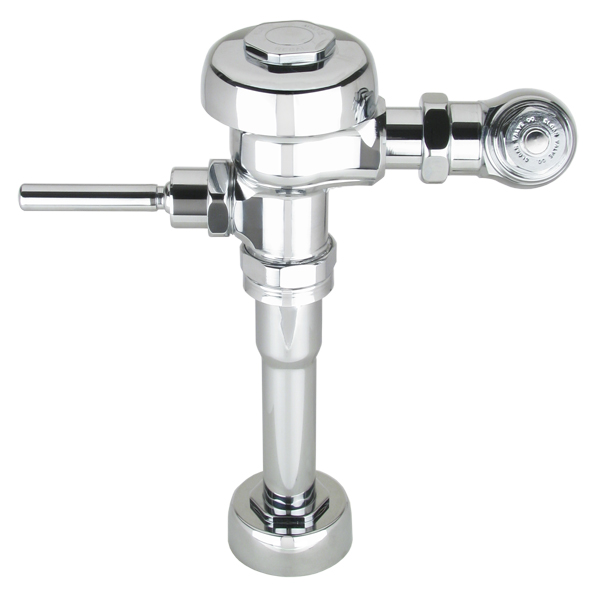

SLOAN 180-1 ROYAL 1.0 GPF URINAL FLUSHOMETER

This Royal 180 Manual Flushometer by Sloan Valve has a flush volume of 1.0 GPF. It has a diaphragm valve and exposed installation that is designed for top spud wall mounted urinals. The royal series of flushometers by Sloan is the industry favorite for commercial applications. All of the major components of the Royal 180 flushometer including the cover, valve body, control stop, and sweat solder kit are made of semi-red brass. An option for this unit is a purple handle, which indicates reclaimed water use. Included with this unit is the wall plate and spud coupling and flange for 1-¼" Top Spud. The tailpiece is adjustable to aid in seamless installation. The handle on this unit is ADA compliant, metal, oscillating, and non-hold with triple seal handle packing.

Specs:
• 1.0 GPF
• 1-1/4" Vacuum Breaker
• 1" Stop

Features:
• Dual filtered by-pass, a development that will enable your flushometer to perform longer than ever before, even in water conditions with high contents of sand and other particulates.
• Diaphragm, handle packing, stop seat and vacuum breaker are molded from PERMEX rubber compound for chlorine resistance.
• ADA compliant metal oscillating non-hold open handle with triple seal handle packing.
• Free spinning vandal resistant stop cap (exposed installations).
• High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut.

EC Part Number: #08332
Manufacturer Number: 180-1
Manufacturer: Sloan Valve Co
