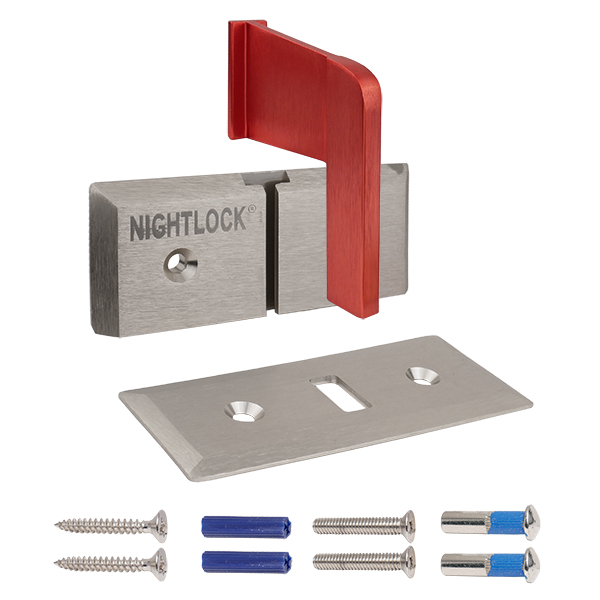

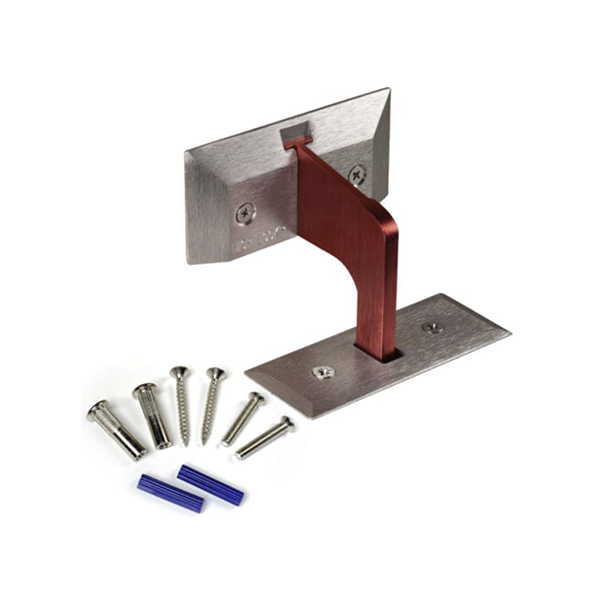

NIGHTLOCK 16002 DOOR TO FLOOR 1/8” LOW PROFILE LOCK DOWN ASSEMBLY

This door to floor low profile lock down assembly is from Nightlock. It acts as a barricade and door jammer for classrooms, offices, and safe rooms for when you need to shelter in place during emergency lockdowns. It can withstand force up to 2,000 pounds. The assembly mounts on the floor, so breaking the doors window to reach the inside door handle won’t matter. Designed for either inward or outward swinging doors. When installed it stays safely out of reach. Nightlock part number 16002.

For educational or public spaces: Although codes vary from state to state, you must obtain approval to use and install a Door Barricade Device from your local code officials or Fire Marshall.

Specs:
• Overall dimensions: 4-1/8″ length x 5-1/2″ width x 4-1/2″ height
• Floor Plate: 5-1/2″ length x 2-1/4″ width x 3/8″ thick OR
• Floor Plate: 5-1/2″ length x 2-1/4″ width x 1/8″ thick
• Door Plate: 5-1/2″ length x 2-5/8″ width x 7/16″ thick
• Locking Handle: 3-3/4″ length x 3/4″ width x 4-3/8″ height
• Made of solid, extruded 6000 series structural Aluminum
• Anodized finish for durability

EC Part Number: #38435
Manufacturer Number: 16002
Manufacturer: Nightlock
