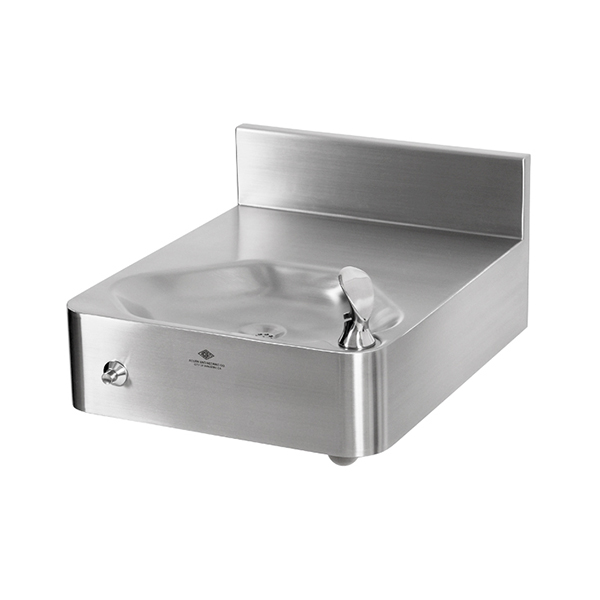

MURDOCK 1042 – STAINLESS STEEL DRINKING FOUNTAIN FOR REAR MOUNT

Stainless Steel Drinking Fountain for Rear Mount

Features:
• Fixture is designed to be installed on a finished wall and serviced from an accessible pipe chase. Fixture is fabricated from 14 gage, type 304 stainless steel and is seamless welded construction. Exterior has a satin finish.
• Drinking fountain valve is an Air-Control, pneumatically operated push button valve using atmospheric air. Push button is vandal-resistant and requires less than 5 pounds to activate valve. Valve includes a 0.7 GPM flow control and may be located up to 10 feet from the operating push button. Stream from spout is less than 3" from front edge and is substantially parallel to front edge.
• Fixture will meet ADA requirements for wheelchair users when installed with spout outlet less than 36" above floor and clearance under drinking fountain a minimum of 27" high. To meet ADA "High-Low" requirements, a second drinking fountain should be mounted with the rim at 40" above floor.
• Regularly furnished items include installation hardware for walls up to 8" thick, grid strainer with thru wall waste and 1-1/2" tubular P-trap behind the wall.

EC Part Number: #89863
Manufacturer Number: 1042
Manufacturer: Murdock
