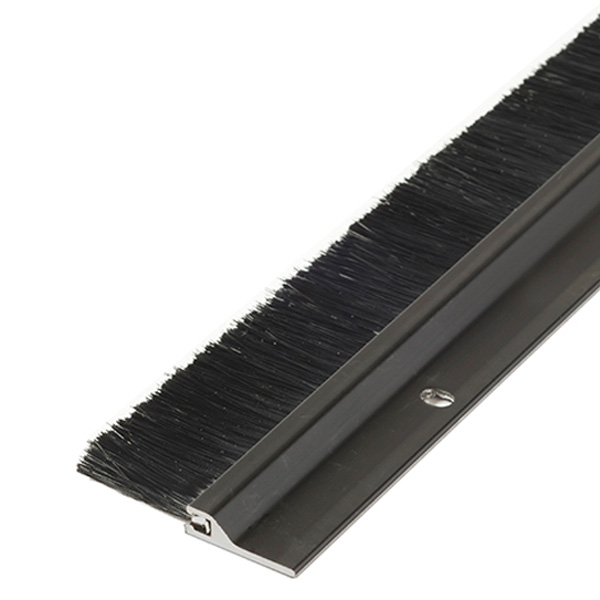

These Door Sweeps are made by National Guard Products, model #601DKB. The astragal or half rounded molding, is made of dark bronze finished aluminum alloy 6063, T5 temper that gets surface mounted to the door. The brush is constructed of black synthetic nylon polymer; Polyamide. The unit is moisture resistant. It has a temperature rating of -70°F to 425°F. The aluminum part that attaches the door to the sweep has a height of ⅞", and the sweep itself is 1" long.
*These door seals are priced per foot, you must specify length when ordering.
Standards:
• REACH and RoHS compliant
• Certified by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• Positive Pressure – Certified by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
EC Part Number: #10134
Manufacturer Number: 601DKB
Manufacturer: National Guard Products
