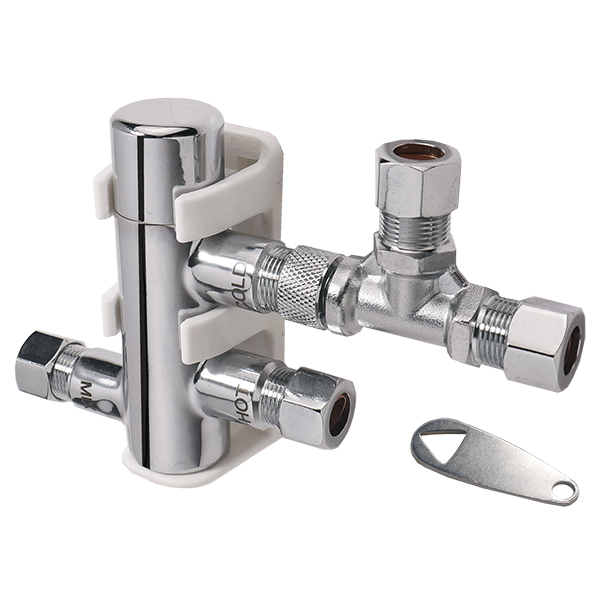

SHARKBITE 25687 CHROME 3/8” COMP THERMOSTATIC MIXING VALVE W/ TEE

This Cash Acme HeatGuard 135 Series Thermostatic Mixing Valve is a compact mixing valve with a sleep aesthetic designed for point of use sensor or manual faucets. When installed it delivers mixed hot and cold water to a single outlet. It features a compact design that easily fits underneath or behind the faucet/sink. It accurately controls temperature and reacts to fluctuations in pressure and temperature. It includes a mounting bracket, hardware, temperature adjustment key, and inlet strainer screens. It has a robust yet simple construction and total flow shut-off for instances when cold supply fails. Suitable for 3/8-inch OD tube. Can be used with 1/4-inch Sharkbite fittings and stops. The body is made of DZR brass, the springs are stainless steel. The internal cap is made of brass. The piston is engineered polymer. The inlet strainer screens are stainless steel.

Specification:
Adj. outlet temperature range: 100-120°F
Factory set temperature range: 105-110°F
Temp. hot supply: 120-180°F
Temp. cold supply: 39-80°F
Maximum Pressure: 230 psi
Flow Rate minimum: 0.25 gpm
Flow rate maximum @ 45 PSI: 2.5 gpm

Certifications: ASSE 1070, CSA B125.7, ASME A112.1070, NSF/ANSI 372, NSF/ANSI 61, Listed by ASSE, CSA, IAPMO.

EC Part Number: #46885
Manufacturer Number: 25687
Manufacturer: Cash Acme
