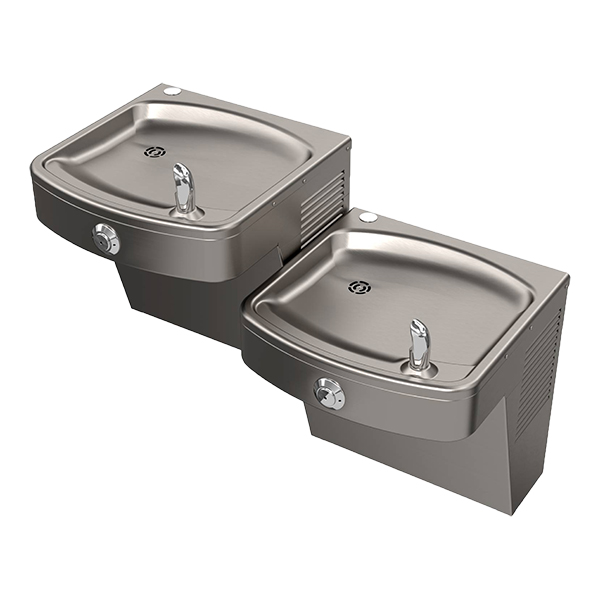

This Vandal Resistant Bi-Level ADA Water Cooler from Murdock Manufacturing is great for high traffic, indoor applications. This fountain delivers a minimum of 8.0 GPH of water at 50ºF. The unit has a chrome plated brass front push button that requires less than 5 pounds of pressure to activate, making it ADA compliant. The non-squirt bubbler is constructed from lead free stainless steel and operates with a water pressure range of 20-105 PSIG. The basin is constructed from 304 stainless steel and has an integral drain. The unit has a cooling system that uses R-134a refrigerant and be capillary tube regulated. Inside the unit is an adjustable thermostat with an off position that helps regulate the refrigeration system. This unit is vandal resistant with its screws, anti-rotating bubbler, and front push button. The unit is universal bi-level allowing it to be installed either left high or right high and not requiring any additional parts. Unit has a satin stainless steel finish. This unit is certified to ANSI A117.1, Public Law 111-380 (NO LEAD), CHSC 116875, and NSF/ANSI 61, Section 9. When this unit installed properly it shall meet the requirements for ADA, ADA Standing Person, and ADA Child.
This unit is a part of the A172.8UBLVR Series by Murdock Manufacturing. It has many other options available. Options that include a concealed support carrier, skirt kit for upper unit, wall bezels for either left high or right high, a 1500 gallon capacity lead reduction filter, and a 220 volt / 50 Hz compressor. Bottle fillers are an option too, with the options being push button or sensor operated. The bottler fillers are available in either granite powder coat or stainless steel.
EC Part Number: #66743
Manufacturer Number: A172408S-UBL-VR
Manufacturer: Murdock Manufacturing
